What are the characteristics of Shenzhen FPC visual alignment punch manipulator system?

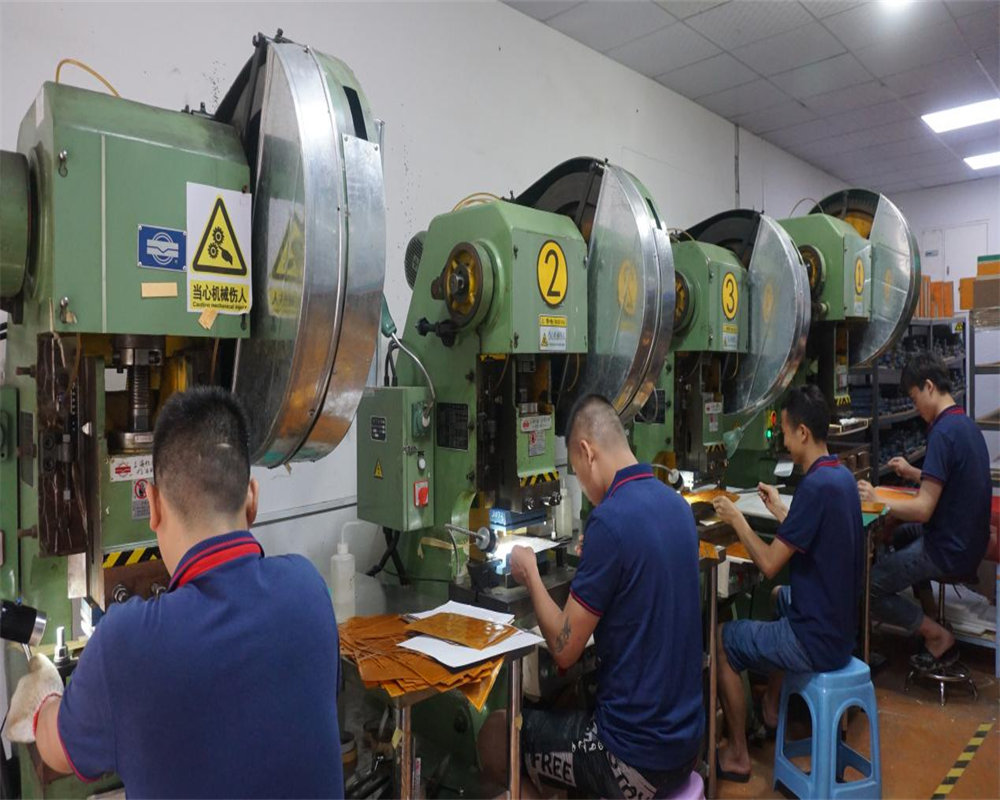

Shenzhen FPC soft board is a kind of flexible circuit board with the simplest structure, which is mainly used to connect with other circuit boards. It is generally divided into single-layer board, double-layer board, multi-layer board, double-sided board, etc. With the development of science and technology, flexible circuit boards are also constantly developing and making progress. Among them, flexible circuit boards are also widely used. The traditional stamping is manual blanking, which may lead to inadequate placement. When through holes are set, FPC boards are easy to tear, with low yield and high manual cost.

These reasons are also related to product production technology. In order to improve the yield and reduce costs, quaternion has developed the FPC visual alignment punch manipulator system. This system is mainly used for processing FPC soft boards of many products such as mobile phones, laptops, PDAs, digital cameras, LCMs, etc. It is equipped with servo motors, stepping motors and CCD precise positioning functions, so it can also be called CCD visual positioning servo punch.

What are the characteristics of Shenzhen FPC visual alignment punch manipulator system? I believe that many people have questions. Today, I will answer them for you!

Quaternion FPC visual alignment punch manipulator system features:

1. Fully automatic feeding and reclaiming, as long as the material tray is placed at a fixed position, no one is required to load and reclaim materials;

2. Automatic clamping without manual positioning and clamping;

3. CCD detection camera for precise positioning;

4. For the improvement of product qualification rate, traditional stamping is manual blanking, which may not be placed in place, resulting in defective products after stamping. This equipment is automatic feeding, and has CCD alignment and angle rotation. The product angle can be adjusted to the positive stamping position.

The above is what the Shenzhen FPC visual alignment punch manipulator system introduced to you by the Shenzhen quaternion editor has. I hope it will be helpful after you see it!
